Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure

  • 1
  • 2

Brand Name : BRITEC

Model Number : BR-25M 4P

Place of Origin : China

MOQ : 100 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 500000 Piece/Pieces Month

Delivery Time : Shipped in 25 days after payment

Packaging Details : EXPORT PACKING

Certification : CE/TUV/CB

Item Name : Surge protection device

Class standard : Type 1+2+3

Uc : 275V

Iimp : 25kA

Poles : 4P

Protection class : IP20

Operating temperature : -40℃—80℃

Material : Thermoplastic UL94-V0

Transport package : carton

Weight (g) : 1000

Contact Now

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Presentation:

• The BR-25M 4P is a Type 1+2+3 SPD designed to protect AC power line at the main switchboard.
• It is suitably used in the TN-S power supply system of AC 50/60Hz.
• High protection level, guaranteeing maximum protection efficiency, an absence of follow and leakage currents, a simplification of use and a maximum lifetime.
• It is designed according to IEC61643-1, GB18802.1
• BR-25M series available in multipolar versions to protect single or 3-phase AC networks, this makes them the best surge protection solution for Type 1 requirements.

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Technology characteristic:

BR-25M 275 4P
SPD classification according to EN61643-11 with 5M Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M Class I + Class II + Class III
Rated operating voltage Un 230V/400V
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 100kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Combined impluse Uoc 20kV
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Max. backup fuse 200A gG
Operating temperature range Tu -40℃—80℃
Relative humudity(25°C) ≤95%
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0

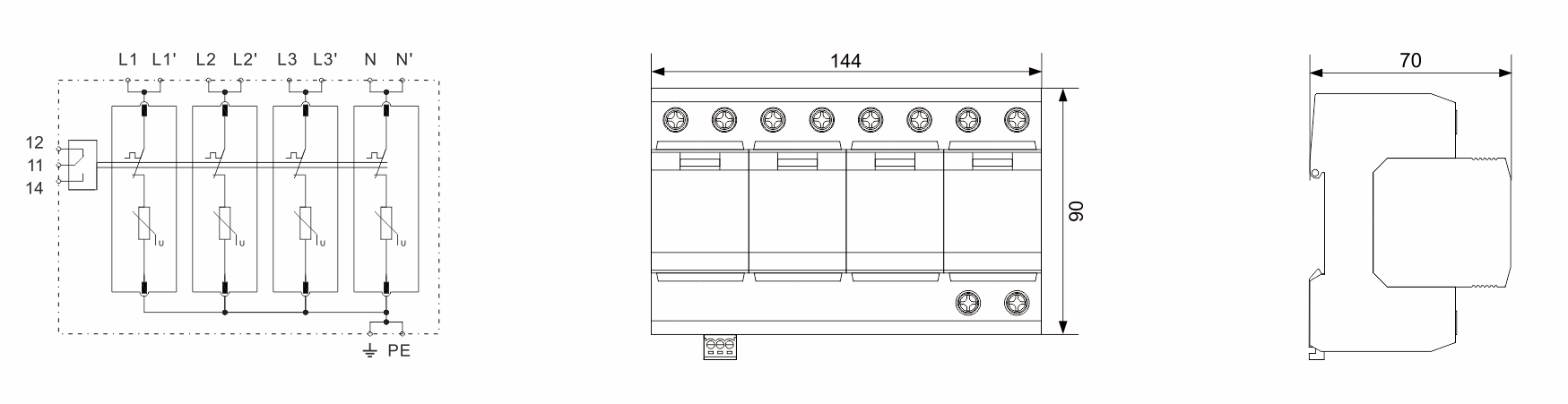

Dimension:

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Product Details Show:
• Maximum current of endure the lightning stroke 100KA.
• Time of response<25ns.
• The color of visible window shows operating status, green means normal, red means abnormal.
Advanced Surge Protective Device (SPD)
Ensure uninterrupted power safety with our cutting-edge surge protective device, engineered to outperform conventional solutions like raycap SPD and models featured in the schneider SPD catalogue PDF. Our SPD system combines robust protection, featuring an SPD alarm that delivers real-time status updates through both visual indicators and remote notifications.

About us:


Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 21 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
Our certification:
Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure
FAQ:

Q1: Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity.

Q2: Are your surge protector supported for customization?
A: Yes, of course.

Q3: How can you ensure your After-sales Service?
A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.

Q4: Are you a trading company or a manufacturer?
A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
